Depaneling Hand Tools


Hektor 2  |  SEP3  SEP1 & SEP1M  |  Maestro 2-2M  |  Maestro 3E  |  SEP2 & SEP2M  |  Maestro 4S

Maestro 5L  |  SEP4  |  DP Hand Tools  |  Hektor & SEP3 Blades  |  SEP & Maestro Blades




Pneumatic Depaneling Tools | Manual Depaneling Tools

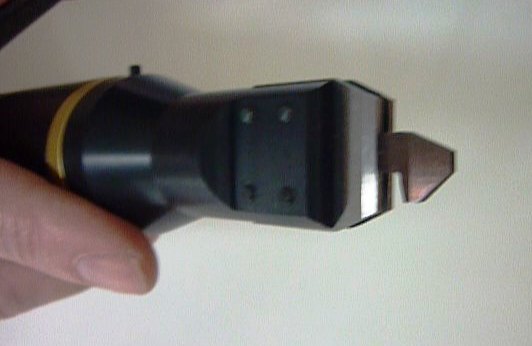

PNEUMATIC DEPANELING HAND TOOL
DPP Tools:  DDP 20N, DDP 23N, DDP 24N, DDP 25N


Pneumatic tool designed to eliminate all depaneling problems.
The DPP is suitable for the quick, economic and secure separation
of tabbed PCBs, leaving smooth edges.

Easy to exchange blades, made from special steel come in various thicknesses.

TECHNICAL DETAILS:
- Maximum PCB thickness: 1.6mm  (0.063")
- Minimum isthmus distance: 11mm  (0.43")
- Maximum cutting force: 80Kg  (176.37 Lb)
- Custom blades available upon request.
- Activated by lever.
- Dimensions: 210x35mm  (8.27" x 1.38")
- Weight: 400g  (0.088 Lb)

Blades are interchangeable, by buying the “set” of the required size (blade and matrix)

The DPP Tool comes with one matrix & blade of your choice.


 Part Number  Hand tool with blade thickness:  Replacement central
blade
Replacement SET
(central blade with matrix)

DPP 20 N    2.0 mm  ( .078")   L20 - 2.0 mm  (.078")   SET 20
2.0 mm  (.078")
DPP 23 N    2.3 mm  ( .090")   L23 - 2.3 mm  (.090")   SET 23
2.3 mm  (.090")
DPP 24 N    2.4 mm  ( .094")   L24 - 2.4 mm  (.094")   SET 24
2.4 mm  (.094")
DPP 25 N    2.5 mm  ( .098")   L25 - 2.5 mm  (.098")   SET 25
2.5 mm  (.098")




top





MANUAL DEPANELING HAND TOOLS
DP 15N, DP 18N, DP 20N, DP 23N, DP 24N, DP 25N


Manual depaneling tools designed for separating low volumes of in a quick, economic and safe way.


The maximum length of the isthmus (tab) should not exceed 3 mm.

Also available in ESD-safe version.

TECHNICAL SPECIFICATIONS:
- Maximum PCB thickness: 1.6mm  (0.063")
- Minimum isthmus distance: 11mm  (0.43")
- Maximum cutting force 1kg.  (2.2 lb)
- Weight: 90g  (0.2lb)
- Tool length: 147mm  (5.79")


 Part Number

Blade thickness

Cutting Force
DP 10 N   1.0 mm  ( .039") 1 kg
DP 15 N    1.5 mm  ( .059") 3 kg
DP 18 N    1.8 mm  ( .070") 3 kg
DP 20 N    2.0 mm  ( .078") 3 kg
7 kg
7 kg
7 kg
DP 23 N    2.3 mm  ( .090")
DP 24 N    2.4 mm  ( .094")
DP 25 N



  2.5 mm  ( .098")


  Specs PDF
