HEKTOR 2

8932145

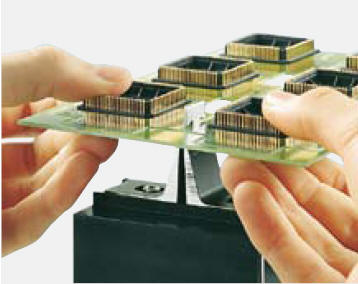

The Hektor 2 like the SEP3, is designed to separate milled (tabbed) PCBs carefully and fast.
The off-cut material is removed smoothly and precisely.
The matrix consists of two parts, this ensures easy and cost saving change of the blades.


  Compressed air is used for the separation process.
  The operating pressure can be set on the machine.
  When the foot switch is pressed, the off-cut is punched
out.
  The cut-offs are collected in the collecting box.
  When the gate is opened the waste material can be extracted.







Matriz para navajas de SEP3 & Hektor 2

Matrix set for SEP3 & Hektor 2
1060005 (8932171)*










BLADES FOR SEP3 & HEKTOR 2



SLOT WIDTH
& BLADE
THICKNESS
STANDARD

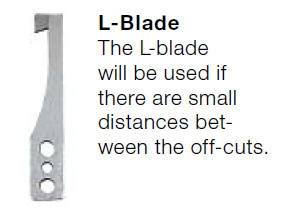

"L" BLADES

L= 5mm  (.196")
H= 80mm  (3.16")
STANDARD
"T" BLADES

L= 4.75mm
(.187")
H= 80mm  (3.16")
REINFORCED
"L" BLADE

L= 9mm  (.354")
H= 80mm  (3.16")
REINFORCED REDUCED
"L" BLADE

L= 3.5mm  (.137")
H= 80mm  (3.16")
REINFORCED
"L" BLADE TALL

L= 9mm  (.354")
H= 83mm  (3.267")
F= 14mm  (.551")
REINFORCED
"L" BLADE
X-TALL

L= 9mm  (.354")
H= 86mm  (3.385")
F= 16mm  (.63")
FOR SEP3 ONLY

Blade Thickness
1.0 mm
(.039")
      106031501
Blade Thickness
1.2 mm
(.047")
      106031502
Slot width
1.5mm  (.059") Blade Thickness
1.4 mm  (.055")
1060015 (8932122)* 1060255
(8932137)*
old p/n 1060215
1060115 1060315 1060415 1060515
Slot width
2mm  (.078") Blade Thickness
1.9 mm  (.074")
1060020 (8932123)* 1060260
(8932138)*
old p/n 1060220
1060120 1060320 1060420 1060520
Slot width
2.4mm  (.094")
Blade Thickness
2.3 mm  (.090")
106002501 (8932141)* 106022501 (8932191)*
Slot width
2.5mm  (.098") Blade Thickness
2.4 mm  (.094")
1060025 (8932124)* 1060265
(8932139)*
old p/n 1060225
1060125 1060325 1060425 1060525
Slot width
3mm  (.118") Blade Thickness
2.9 mm  (.114")
1060030 (8932125)* 1060270
(8932144)*
old p/n 1060230
1060130 1060330 1060430 1060530
BLADE USE Use for most applications Use to eliminate turning PCBs For wide tabs and to increase blade life if "L" fits between tabs Use for  PCBs with small tabs Use to increase blade life and for PCBs thicker than 2mm (.078") Use to increase blade life and for PCBs thicker than 2mm (.078")

* Hektor 2 part numbers


Hektor 2 Specs PDF           Blades SEP 3  &  Hektor 2         SEP3
