(8931300 discontinued model offered with standard blades)

The Maestro 5 is used whenever a large number of pre-scored boards need to be separated. PC Panels with a maximum width of 310mm (12.20") can be separated by up to 10 circular blades simultaneously. Sensors are used to monitor the separation process.

The PCBs are placed either by hand or they are fed automatically by a loading station.

The SMEMA interface is the standard connection for this use.

The Maestro 5L can be adjusted to your PCB and your individual requirements.



Maestro 5L Specs PDF                                                                                                                                                                                                                                                                                                                      top

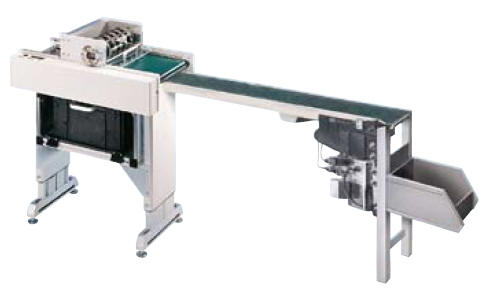

The Maestro 5L is supplied with an adjustable base this way it can be adapted optimally to every requirement.		This shows a specific application with a conveyor belt. The separated PCBs are transported by the belt for further treatment. Workplaces are arranged on the right and on the left of the belt. The side strips drop down into a collecting box.
