Transistors

TP/TO-CF | TP/TS1


TP/TO-CF

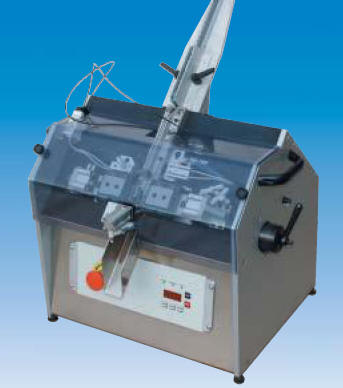

The TP/TO-CF is an automatic machine designed to cut and form transistors in a tube (TO-220, TO-218, TO-126, TO-247).

All operations are controlled by a PLC. The complete process is fully automated.
Each type of transistor requires a dedicated die.
Two wire holders lock the leads before the cutting and forming operation.
The productivity of the TP/TO-CF is approximately 2,500 parts per hour.

Each form below represents a different die.                                                                                                                                                      top

131000 TO220 straight cut	131300 TO220 90° bending	131400 TO220 surface mounting	132100 TO220 center lead out
132200 TO220 center lead spread and lock	132300 TO220 center lead spread 3 lead lock	132400 TO220 stand-off lock-in 3 lead in line	133100 TO220 90° bending center lead 5mm out

Specs TP/TO-CF PDF                                                                                                                                                                                                   top

We also offer Hand tools for CUT, FORM, OR CUT & FORM leads of Electronic Components.


TP/TS1
The TP/TS1 is a pneumatic machine designed to cut and form loose radial components.


There are over 20 standard interchangeable dies available. Special dies can be made to modify the specs of a standard form or a new form can be developed from a drawing upon request.


181800 to reduce pitch & cut	182100 power transistor center lead 2.5mm out	182200 To220 center lead spread and lock	182300 To220 center lead spread 3 lead lock	183100 To220 90 center lead 5mm out
182400 To220 stand-off lock-in 3 lead in line	182500 To92 center lead 2.5mm out	182600 To92 center lead spread and lock	182700 To92 center lead spread 3 lead lock	182800 To92 stand-off lock-in 3 lead in line
OTHER DIES AVAILABLE:				top
180600 stand-off lock-in	180700 stand-off lock-in led	180800 stand-off outward form	180900  lock-in	181000 straight cut
181200 stand-off lock-in polarity for led	181300 90 bending	181400 surface mounting	181500 stand-off inward form	181700 to spread out and cut

TP/TS1 Specs PDF

We also offer Hand tools for CUT, FORM, OR CUT & FORM leads of Electronic Components.
