Machines and Tools for IC's


TP/IC-F
 | Ally & Ally Plus


FORMING  MACHINE

MANUAL MACHINE


MOTORIZED MACHINE


TP/IC-F.jpg TP/IC-F samples

TP/IC-F
77.OL01

Manual machine to straighten the leads of integrated circuits.

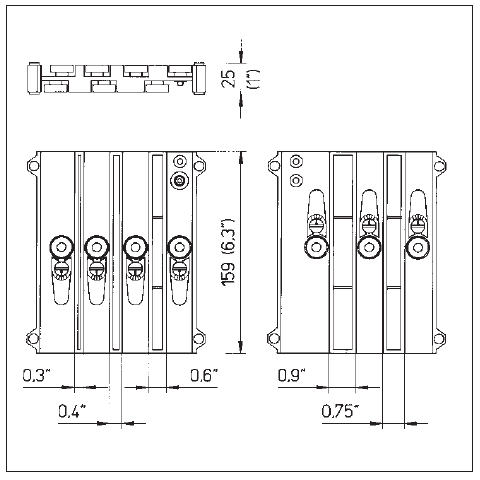

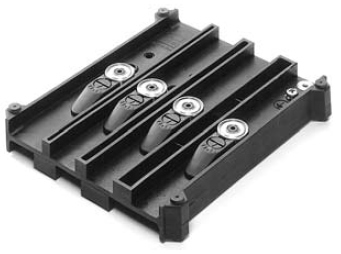

This machine is supplied with Tube Holders for components with .3" (7.62mm) and .6" (15.24mm) pitches.

Pitches .4" (10.16mm),  .75" (19.05mm),
.9" (22.86mm) are available upon request.

 TP/IC-F Specs PDF



TP/IC-F/M

TP/IC-F machine with
Mot-ICF












top


STRAIGHTENING TOOLS
ALLY PLUS TP/IC-F samples

ALLY PLUSLLY
SAL 01 SP








ALLY TP/IC-F samples

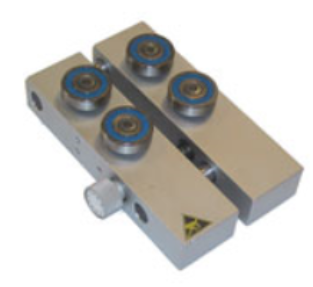

ALLY
SAL 01 NN





0.3”

Pins aligner with press ROLLERS for integrated MOS and CMOS.
For ICs with 4 to 64 pins.

Adjustable pin distance from
(0.3” a 0.6” ) – ( 7,6 – 15,2 mm)



Pins aligner without press ROLLERS for integrated MOS and CMOS.
For ICs with 4 to 64 pins.

Adjustable pin distance from
(0.3” a 0.6” ) – ( 7,6 – 15,2 mm)



ALLY PLUS DRAWING

 Ally & Ally Plus PDF




ALLY

                                                   top



Operation of the Ally and Ally Plus is made by sliding the packaging tube between the 4 metal rollers.
Easy adjustment of the pitch is achieved by the side knob.



NOTE:
The IC Butler 2, IC Butler 3 and IC Butler 5 and the Adjustable Pin Aligner have been discontinued
.
