 MAESTRO 2 MANUAL
8933900
(8930500 Discontinued model which was supplied with standard blades)

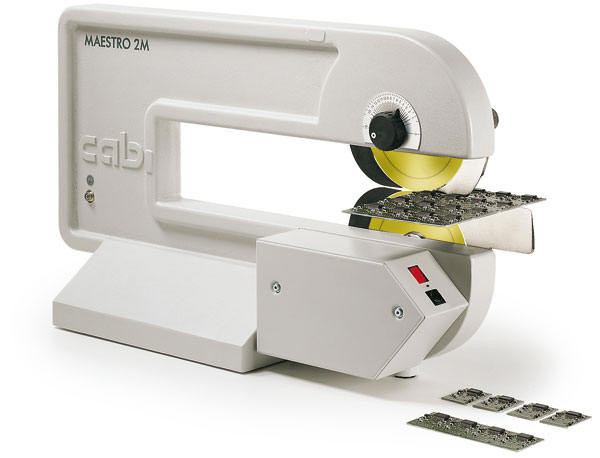

MAESTRO 2M MOTORIZED
8933935
(8930599 Discontinued model which was supplied with standard blades)
The models Maestro 2 and Maestro 2M units separate PCBs economically.
The circular blades made from special steel and coated with Titanium ensure a long service life.
The separation of the PCBs is achieved by holding the PCB with both hands and feeding it manually pushing it between the circular blades to get separated.
On the Maestro 2M, the lower circular blade is driven by a motor.
The PCB is fed between the circular blades where it is seized, transported and separated.
Three different speeds can be selected.
The Maestro 2M separates PCBs without fatigue of the operator. top
On both units, the Maestro 2 and the Maestro 2M, the clearance between the upper guide and the lower guide is adjustable to ensure that the PCB is only fed through the machine in the pre-scored groove.
The pre-scored grooves can be interrupted by cut-outs with a length of up to approx. 5mm.
The clearance between the circular blades can be adjusted with the rotary knob and is shown on the scale. Tests have revealed that the larger the clearance between the circular blades, the smaller the stress produced during the separation process.
Separation type
Component side and solder side: circular blades
Separation speed Maestro 2M
Approximately 100/200/300 mm/s
Separation length
15 - 300 mm (.60" - 11.8") top
All the new Maestro units come with Titanium coated blades. Following are the part numbers of the replacing blades and guides:
For a list of standard blades 8930501 and 8930513 and others click here. top
 Maestro 2M Specs PDF
|
