TP/LN-500 | TP/LN-100 | TP/TC4 | TP/SC4 | TP/TS1

CUTTING MACHINES

TP/LN-500
The TP/LN-500 is a pneumatic machine to cut loose radial components by using a guillotine type lower blade. It can handle any type of radial component regardless of lead diameter, pitch and form. The upper plate thickness comes at a standard .125" (3.2mm). Additional plates can be ordered to increase the height, starting from .019" (0.5mm). Two versions are available:
TP/LN-500/1 with a cutting area 2.09x1.7" (53x43mm)
TP/LN-500/2 with a cutting area 2.09x3.66" (53x93mm)
The standard grid pattern accommodates most types of components. Special grid pattern plates can be provided upon request.

TP/LN-500 Specs PDF top

TP/LN-100
The TP/LN-500 is a pneumatic machine to cut loose radial components. The upper stationary plate determines de cutting height, the standard is .125" (3.2mm). Additional plates to increase this height are available starting from .019" (0.5mm).
The cutting area is 1.77x2.12" (45x54mm).
Lateral cuts at the most common pitches allow the easy handling of bent leads. The standard grid pattern accommodates most types of components. Special grid pattern plates can be provided upon request.

TP/LN-100 Specs PDF top

TP/TC4

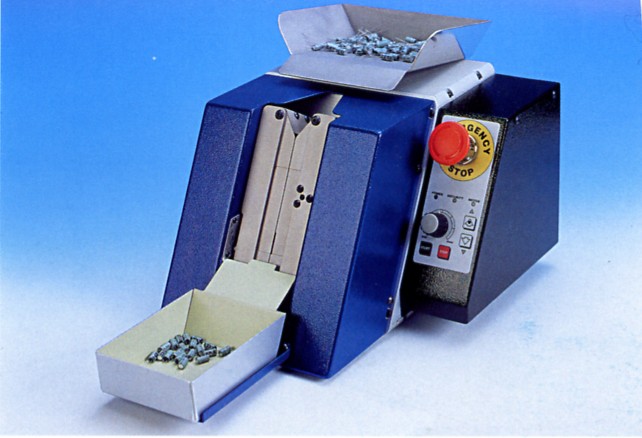

Motorized cutting machine for loose radial components. Adjustable speed. Easy and quick manual component feeding. Two belts hold the leads and feed them through the rotary blades. The cutting length can be adjusted by turning an allen screw located on the right from guide.
The attachment BR3 can be added to handle taped radial components. The BR5 is an accessory to hold and feed components from a tube.

TP/TC4 Specs PDF top

CUTTING & FORMING MACHINES

TP/SC4
The TP/SC4 is a pneumatic machine for loose radial components. There are over 20 standard interchangeable dies available. Special dies can be made to modify the specs of a standard form, or a new form can be developed from a drawing upon request.

TP/SC4 Specs PDF top

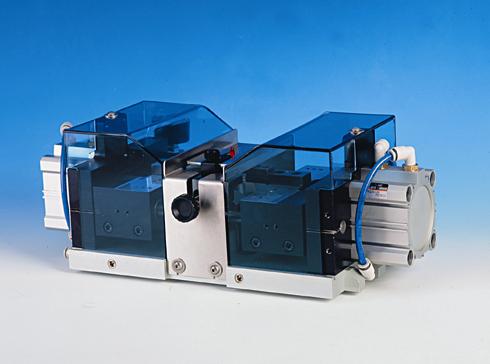

TP/TS1 The TP/TS1 is a pneumatic machine for loose radial components. There are over 20 standard interchangeable dies available. Special dies can be made to modify the specs of a standard form, or a new form can be developed from a drawing upon request.

TP/TS1 Specs PDF top
