TAPED COMPONENTS

LOOSE COMPONENTS

FOR TAPED COMPONENTS THE MACHINES CAN BE MANUAL OR MOTORIZED

FOR LOOSE COMPONENTS WE RECOMMEND MOTORIZED MACHINES ONLY

TP6
Cut and bend machine for axial components. The standard version is designed for leads from .015-.051" (0.4-1.3mm) Other versions available for reduced bend from body, fixed pitches (.2, .3, .4" or 5.08, 7.62, 10.16mm) and heavy leads (up to .055" or1.4mm).
TP6 Spec PDF

TP6/A
TP6 machine with Motor-98 and CS10 loose parts feeder.

TP6-D
Axial Cut and Bend machine for Axial  Components with Delrin Inner Discs

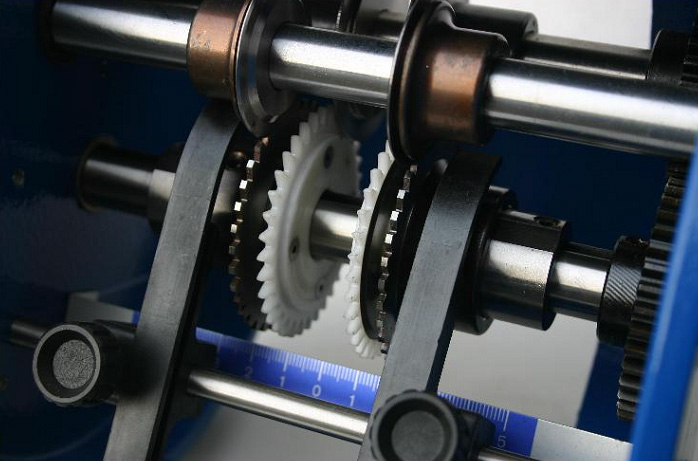

The TP6-D cuts & bends axial components as the regular TP6, with the difference that this machine has Delrin instead of metal inner discs so it will not mark the surface of the leads of the components when it bends them. This is important when working with very small and delicate components and for Military applications.

TP6 Spec PDF                                                                        top

The TP6-D is available Standard (20.OL11) and Reinforced (20.OL12)


TP6/PR-B
Cutting, bending and forming machine for axial components. The form obtained is a Stand-off which keeps the body of the component off the board. No dies are required.
Large diameter components only: .039-.055" (1-1.4mm)
TP6/PR-B Specs PDF                                                             top

TP6/PR-B/A
TP6/PR-B machine with Motor-98 and CS10 loose parts feeder.

TP6/PR-F
Cut, bend and form machine for axial components. Three versions are available depending on the lead diameter of the components:
.019-.035" (0.5-0.9mm)
.031-.039" (0.8-1mm) and
.039-.051" (1-1.3mm).
Various dies are available for each version. The TNS is always supplied with this machine.
TP6/PR-F Specs PDF                                                                                top

TP6/PR-F/A
TP6/PR-F machine with Motor-98/A and CS40 loose parts feeder.

TP6/V
Cut and bend machine for axial components for vertical mount. Two main versions are available. The first one for components with lead diameters .019-.031" (0.5-0.8mm). The second one for thicker leads .031-.051" (0.8-1.3mm). Tooling for different pitches is available.
TP6/V Specs PDF                                                                                      top

TP6/V-A
TP6/V machine with Motor 98 and CS30 loose parts feeder.

TP6/V-PR
Cut, bend and form machine for axial components for vertical mount. The standard form will lock the component into the PCB. Handles components with lead diameters from .019-.031" (0.5-0.8mm). Pitches .100" (2.54mm) and .200" (5.08mm) are available.
TP6/V-PR Specs PDF                                                                              top

TP6/V-PR/A
TP6/V-PR machine with Motor-98/A and CS20 loose parts feeder.



TP6/S
Cutting, bending and forming machine for axial components for SMD. This is a special machine and it is necessary to obtain all dimensions when ordering.
TP6/S Specs PDF                                                                                        top

TP6/S/A
TP6/S machine with Motor-98 and CS10 loose parts feeder.
